Automatic Tomato Ketchup Machine
Fully Automatic Tomato Ketchup Machine
Fully Automatic Tomato Ketchup Machine
Fully Automatic Tomato Ketchup Machine
Tomato Ketchup Making Machine, Bangladesh is suitable for new food business startups, existing manufacturers, contract manufacturers, and factories that require a high-quality machine to make ketchup on an industrial level. The machine performs processes such as washing, chopping, boiling, seasoning, and packaging in a single operation, providing customers with an assured way to get their hands on high-quality ketchup in a single process.
Standard entry scale for brand growth
Standard entry scale for brand growth
Standard entry scale for brand growth
Standard entry scale for brand growth
Standard entry scale for brand growth
Bangladesh Tomato Ketchup Manufacturing Machine is available at five levels of production capacity ranging from pilot-level production to export-level production lines.
Ideal for start-up businesses and companies developing new products through experimentation. Best suited for producing ketchup in small quantities.
Recommended for companies that are growing out of the pilot-level stage and are into production mode. Best suited for producing ketchup for regular regional supply.
Suitable for food processing companies that have a regular demand. Best suited for regular commercial production.
Ideal for food processing companies which provide their products to retail chains and institutional clients. Best suited for producing ketchup on a larger scale than the previous one.
Best suited for large-scale productions and export purposes.
PRODUCTION WORKFLOW
| Key Selling Points | High Productivity | Control Type | Push Button |
| Heat Source | Electric | Special Feature | Large Capacity |
| Warranty | 1 Year | Dimension (L×W×H) | 2375 × 690 × 1630 mm (approx.) |
| Material | Food-Grade SS304 (Contact), SS302 (Non-contact) | Voltage | 415 V, 3-phase, 50 Hz |
| Finished Food | Tomato Ketchup | Application | Food Processing Industry |
| Construction of Material (MOC) | Food-Grade SS304 (Contact Parts), SS302 (Non-contact Parts) |
PRODUCTION WORKFLOW

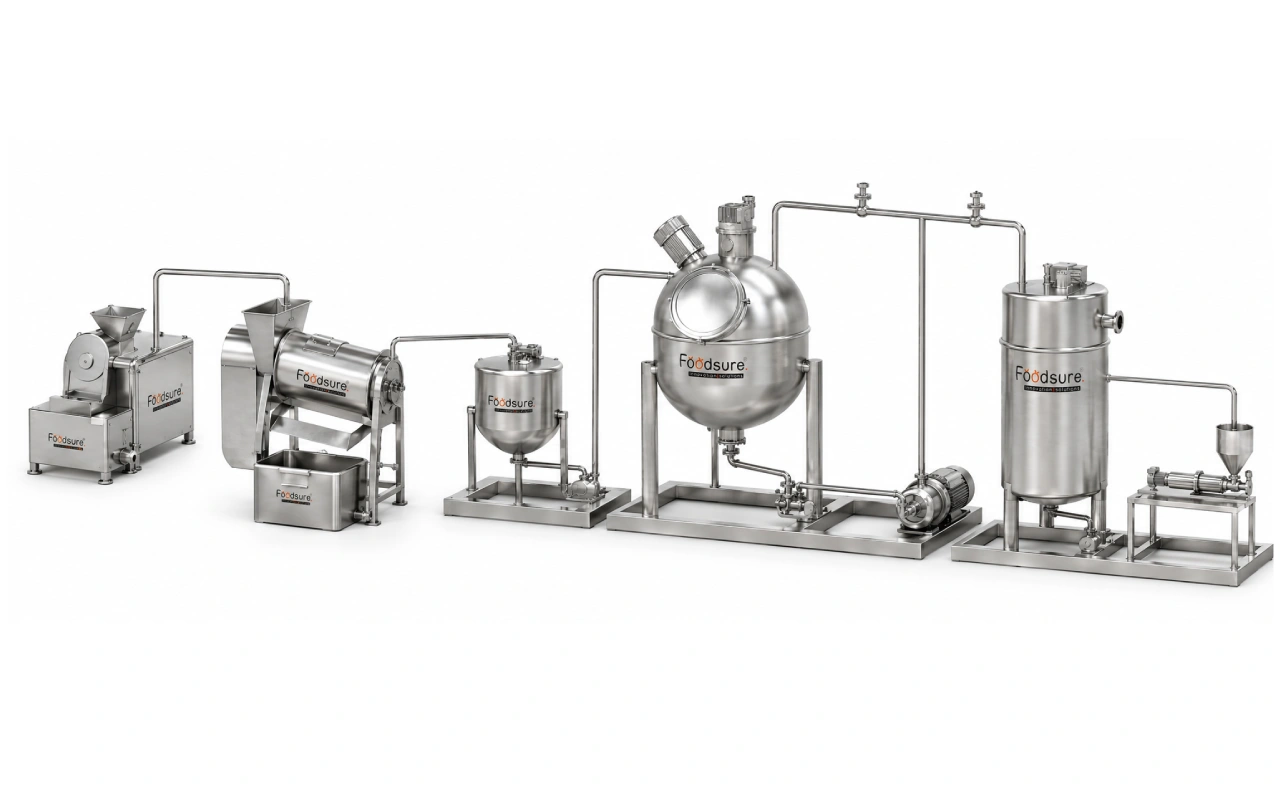

This line transports tomatoes from being an ingredient to becoming packed ketchup in food-grade processing steps.
Raw tomatoes are sorted and washed before pulping to sort out any defective products. This process ensures quality of the end products.
Sorted tomatoes are crushed and pulped to ensure that base pulp is formed. The pulp goes directly to the cooking process.
The pulp is cooked and concentrated to the desired consistency by means of using the machine’s steam-jacketed vessel.
Spices, sugar, salt and vinegar are mixed in the concentrate.
Ketchup is then filled and packaged in hygienic conditions and according to packaging format requirements.
PRODUCTION WORKFLOW
Foodsure provides integrated food-processing solutions for businesses across different sectors, helping manufacturers establish efficient, hygienic, and scalable production facilities.
PRODUCTION WORKFLOW
Built for factory owners and industrial buyers who need dependable, scalable ketchup production.
PRODUCTION WORKFLOW
Bangladeshi factory owners opt for Foodsure for their reliable machinery and service.
Machines are designed and made in-house, not outsourced. Thus, all units will have the same high quality.
Support services include installation, commissioning, and operation assistance. Customers won’t be on their own while installing the line.
Machinery is delivered to manufactures all over Bangladesh. Logistic support ensures the commercial import of the line.
Foodsure has been building machinery in different food processing sectors. This allows the company to consider its experience while designing the ketchup line.
The line has a steam-jacketed cooking mechanism that is designed to consume less energy per batch. So, there will be lower costs during the work cycle of the machine
The capacity, configuration and other equipment can be customized to the buyer’s production needs. It also includes linking to other lines like Tomato Sauce Machine.
PRODUCTION WORKFLOW
A below pictures show the finished products from ouTomato Ketchup Making Machine running through the full cycle, from pulping to filled output. It gives factory owners a direct view of cycle time and finished product consistency before purchase.
| Capacity per Hour | Power (kW) | Area Required (Sqft) | Size of Machine (L × W) | MOC (SS 202 / SS 304) |
|---|---|---|---|---|
| 100 kg | 15–18 kW | 2000 | 35 × 12 × 12 | SS 304 |
| 200 kg | 20–25 kW | 5000 | 55 × 12 × 12 | SS 304 |
| 500 kg | 35–40 kW | 10000 | 65 × 12 × 12 | SS 304 |
| 1000 kg | 70–80 kW | 15000 | 100 × 20 × 12 | SS 304 |
| 2000 kg | 80–100 kW | 15000 | 150 × 30 × 12 | SS 304 |
PRODUCTION WORKFLOW
PRODUCTION WORKFLOW
The machine comes in five different capacity grades ranging from 100 kg/hr to 2000 kg/hr. Depending on the intended production capacity, factory owners choose any grade.
Yes, the settings for seasoning and mixing can be changed to suit various formulations without affecting batch-to-batch consistency.
The ketchup production line involves a number of machines such as washing machine, pulping machine, cooking machine, seasoning machine, and filling machine, which can be combined with Tomato Sauce Machine of Bangladesh in case of sharing in processing. Setup depends on the buyer's range of products.
Yes, the machine is designed for commercial producers, contract manufacturers, and factory owners in Bangladesh. Machine capacity and setup are customized depending on the needs of local production.
Yes, machine capacity and setup can be customized to the production requirement. This includes compatibility of machines such as Tomato Sauce Machine.
